42" Split Console, Left Front Drawers/Right Side Door

(All cabinets shown in Skyline Walnut. Click on photo to enlarge.)

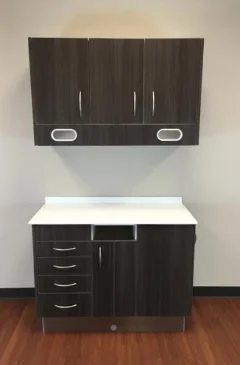

Front View

Side View

Open View

(3 options available at base unit)
see…Drawer/Door Configurations

Dental cabinets are available in a variety of Laminate Finishes and Countertop Colors.
Custom Colors are available through direct quote.

SPLIT CONSOLE FEATURES:

Base Utility Cabinet

Center Equipment Bay includes pre-drilled bolt patterns for easily mounting major brands of dental arms, or drill independently on base plate according to any dental arm specifications
Center Bi-fold Door allows open door access to equipment, or closed door access with 6" opening remaining for dental arm extension
Soft Close Single Door with Right Side access
Soft Close Drawers (4) with Left Front Access, white metal slides and drawer boxes
Fold Down Drawer Panel (top left) allows hose extension if equipment housed in top drawer
Removable Bottom Panels at cabinet base interior allows access to electrical/hose lines
Multiple Grommet Holes to run electrical or hose lines throughout rear of cabinet
Matte Nickel, Door and Drawer Pulls with closed, curve design
Adjustable European Hinges

Upper Storage Cabinet

Separate Storage Compartments (3) with Adjustable/Interchangeable Shelves (6)
Computer Vents, Electrical Cutout Panel, and Electrical Grommets at center compartment
Glove Box (2) located at front panel for easy access (now comes standard in stainless steel)
Matte Nickel, Door Pulls with closed, curve design
Adjustable Mounting/Leveling Brackets
Adjustable European Hinges
Digital Flow Meter Cutout Panel available (see Accessories)
Sliding Monitor Mounting Bracket available (see Accessories)
Computer Vent Fan available (see Accessories)

Solid Surface Countertop

Hygienic, Non-Porous, 100% Acrylic Solid Surface Countertop (1/2") with Backsplash (2")
Coordinated Grommet centered at rear of Countertop

Decorative Toe Kick

Decorative Metal Laminated Plywood Toe Kick in Satin Brushed Nickel
Taller Toe Kick Height (6") allows maneuverability of dental stool wheels around cabinet base
Ergonomic Set Back (3") allows comfortable standing position at front of cabinet
Foot Control Grommet located at front center of toe kick to run electrical/hose lines
Concealed, Adjustable Foot Levelers

DIMENSIONS: 43.5"w x 21"d x 78"h

INSTALLATION: Anchors to Wall Studs

PRODUCTION SCHEDULING: Please allow minimum 6 weeks lead time. Call for current schedule.

* Delivery & Installation Not Included. Applicable Sales Tax Not Included.
